ALU FLEX™ DIY Louver Patio Kit 13 x 19 ft
Turn a 13 by 19 foot patio into shaded outdoor space you can open up or close down whenever you like. The ALU FLEX™ kit ships in one box with a motorized louver roof, integrated lighting and a rain sensor.
- Shades an area of 13 by 19 ft
- Four 6×6 in. posts, 10×4 in. beams and 6×1.5 in. blades
- 110v motor with rain sensor included
- LED lights built into beams and louvers
- 6063-T6 aluminum with AAMA 2604 powder coat
- 7-stage AAMA 2604 powder coat
- Non-combustible aluminum, Zone Zero ready
Price range: $11,551.02 through $12,737.23
Request my install quote
Send a photo of your opening. We reply with one price for the kit, delivery and install, or call (424) 522-2143.
USA aluminum6063-T6
AAMA 2604powder coat
No weldingbolt together

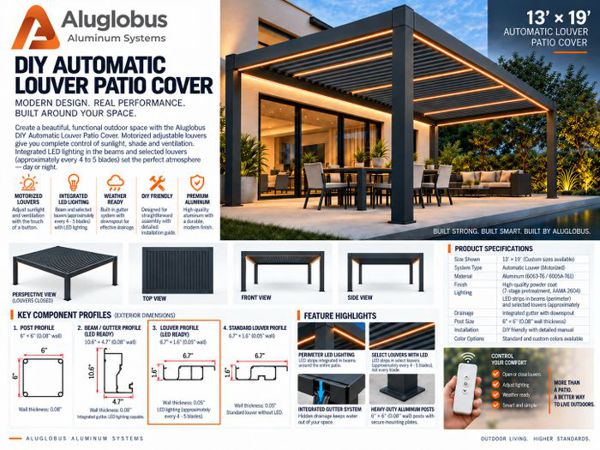

An adjustable aluminum roof sized for a 13 x 19 ft patio
The ALU FLEX™ DIY Louver Patio Kit is meant for homeowners and installers who want a motorized roof without piecing together a parts list. Rotating blades let you tilt the roof for daylight and breeze or shut it for shade, and the full 13 ft by 19 ft structure is packed together in a single box.
Specifications
- Posts: 4 pieces, 6 x 6 in.
- Beams: 10 x 4 in., lit with LEDs
- Louvers: 6 x 1.5 in., lit with LEDs
- Drive: 110v motor plus a rain sensor
- Alloy: 6063-T6
- Coating: AAMA 2604 super-durable powder
Finish choices

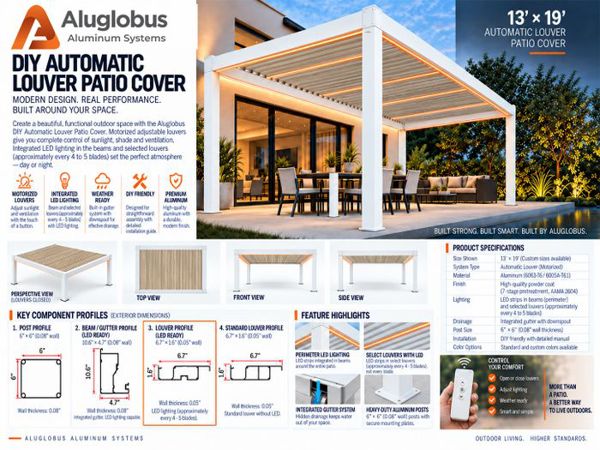

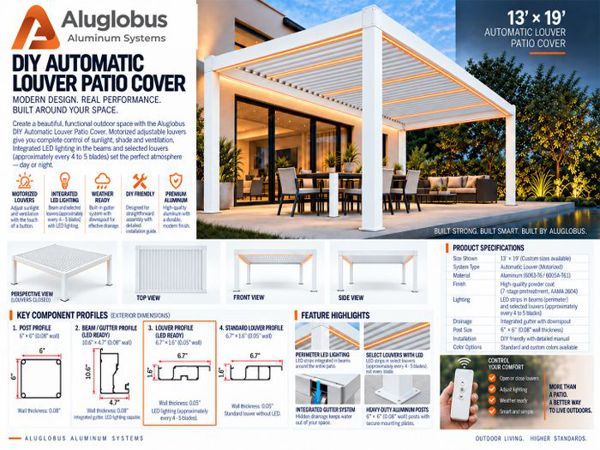

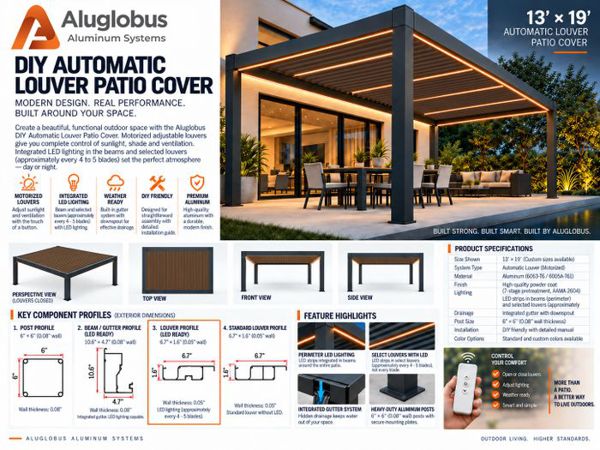

Choose an all-black roof, a black frame paired with Warm Teak wood look blades, an all-white roof, or a white frame with White Oak wood look blades. The wood look versions bring a timber feel overhead with no staining to schedule, since the blades are aluminum.
Planning the installation
- Check that the footprint leaves room for walkways and water runoff.
- Have a licensed electrician connect the 110v motor in line with local code.
- Ask Globus Gates how the posts should be anchored to your slab or footing. Anchors and base plates are not included. Ask our team for details on exact beam and louver counts.
- Confirm permit or HOA rules with your local authority, then follow the supplied instructions.
FAQ
Is a rain sensor part of the kit?
Yes. It comes with the 110v motor that drives the blades.
Will I need separate light fixtures?
No. LEDs are already integrated into the beams and louvers.
What if my patio is a different size?
This box is fixed at 13 x 19 ft. Ask Globus Gates about the custom Automatic Louver Pergola Kit for other dimensions.
Installation
Step 1
Measure the opening and check what the product mounts to.
Step 2
Assemble the pre-cut parts with the included hardware. No welding.
Step 3
Set, level and fasten, then fit any lock or accessories.
Rather not do it yourself? Our crew installs across Southern California.
