Profile 20Profile 20 DIY Pedestrian Gate Kit 4 x 6 ft, 3/8 or 1/2 in. Gap – BlackAluminum gates
$765.54View
Highlights
- 4 ft wide x 6 ft high, single swing
- Profile 40 horizontal woodgrain boards, 3/8 or 1/2 in. gap
- 6063-T6 aluminum, AAMA 2604 finish (Cardinal / TIGER)
- Frame, hinges, latch, mounting hardware and guide included
- Non-combustible aluminum, Zone Zero ready

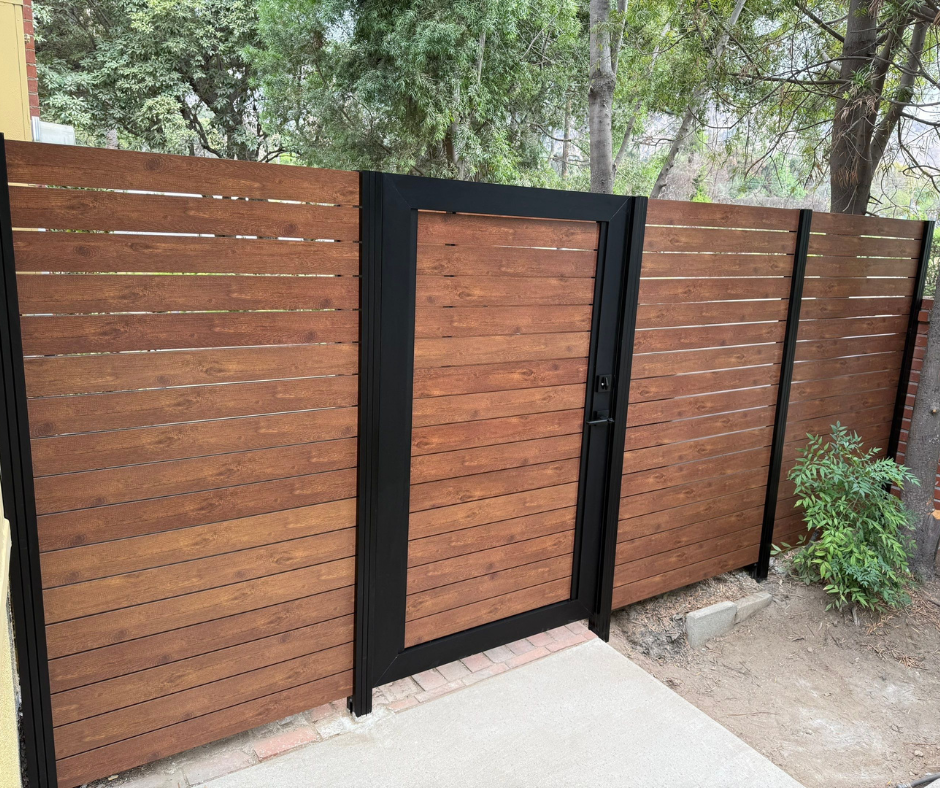

A compact wood-look entry
Four feet is a comfortable width for walkways, side yards and garden gates. This Universal DIY kit gives that opening a horizontal wood look using Profile 40 aluminum boards in a woodgrain finish. It is designed to sit between two walls and to go together with ordinary tools.
What arrives
- Universal DIY aluminum frame forming the 4 by 6 ft leaf
- Profile 40 woodgrain boards for horizontal infill
- Hinges and a latch
- Mounting brackets and assembly hardware
- Stainless steel screws for frame and boards, per the instructions
- A six-step installation guide covering prep, frame, boards, hinges, posts and final tuning
Materials
The frame and boards are 6063-T6 aluminum with a USA-made material spec, finished to AAMA 2604 using Cardinal or TIGER paint. The substrate is non-combustible. Aluminum will not form iron rust, swell or need refinishing, so the woodgrain stays good-looking with simple washing.
Gap choices
The gate is offered with a 3/8 in. or 1/2 in. space between boards. A wider gap lets in more light and air, while a tighter one adds privacy. Confirm which gap you want with Globus Gates when you order.
Plan before you build
Measure the finished opening, check that both mounting surfaces are solid, and decide swing direction and lock choice before assembly. Custom sizes and other colors may also be possible.
Where does it work best?
Home side entries, pool areas, garden and backyard access, and light commercial walkways.
Do I need welding gear?
No. The frame is pre-engineered for bolt-together assembly.
Is a wider size available?
Yes, a 6 by 6 ft woodgrain version is offered.
Reviews
Bought this? Write the first review
Rather not install it yourself?
Our own crews install across Southern California. Send your measurements and get one fixed price.
Get an install estimate1
Measure the opening and tell us what it mounts to.
2
We send a parts list or an install price.
3
The boxes ship, or our crew builds it.
