Highlights

  • Cantilever layout with fewer front posts
  • 8 in. aluminum louver blades
  • Motor, transformer and multi-channel remote
  • Residential and commercial projects
  • Engineering review required
  • 7-stage AAMA 2604 powder coat
  • Non-combustible aluminum, Zone Zero ready

An open front with an adjustable roof

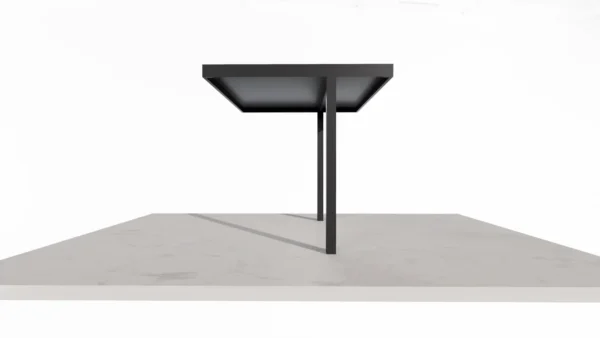

The Globus FLOAT™ Architectural Cantilever Patio System is aimed at outdoor kitchens, pool lounges, fire pit seating, restaurants and modern homes where posts along the front would get in the way of furniture or views. The motorized louvers move between open sky, filtered shade and a closed roof as the weather changes.

Package sizes

  • Starter: 8x10, 10x10 or 10x12 ft, for compact patios and grill areas
  • Standard: 12x12, 12x16 or 12x20 ft, for larger residential patios
  • Large: 16x16, 16x20 or 20x20 ft, for big living areas, rooftops and hospitality spaces

Structural parts

  • Posts: 6x6, 7x7 or 8x8 in., in 10, 12 or 14 ft lengths
  • Inner base plates: 5-3/4 in. for 6 in. posts, 6-1/2 in. for 7 in. posts
  • U-channel, 3 in. nominal (2.125 by 3.147 in.)
  • Beams: 2x8 or 2x10 in., in 16, 20 or 24 ft lengths

Roof package

It uses 8 inch blades with pivot and link bars, pins, starlocks and washers, a motor with bracket, a transformer and a multi-channel remote. A 360 degree weather strip and gutter layout are planned with the roof.

Options to discuss

Rain sensor, app control, LED channel, strip and recessed lighting, a beam for recessed lights, ceiling fan planning and custom powder coat colors.

FAQ

Why is engineering needed?

Every cantilever louver layout is reviewed for load, span and attachment before it is finalized.

How is my package defined?

Share your size, projection, post layout, color and electrical plans with Globus Gates, and the package is built around them.
